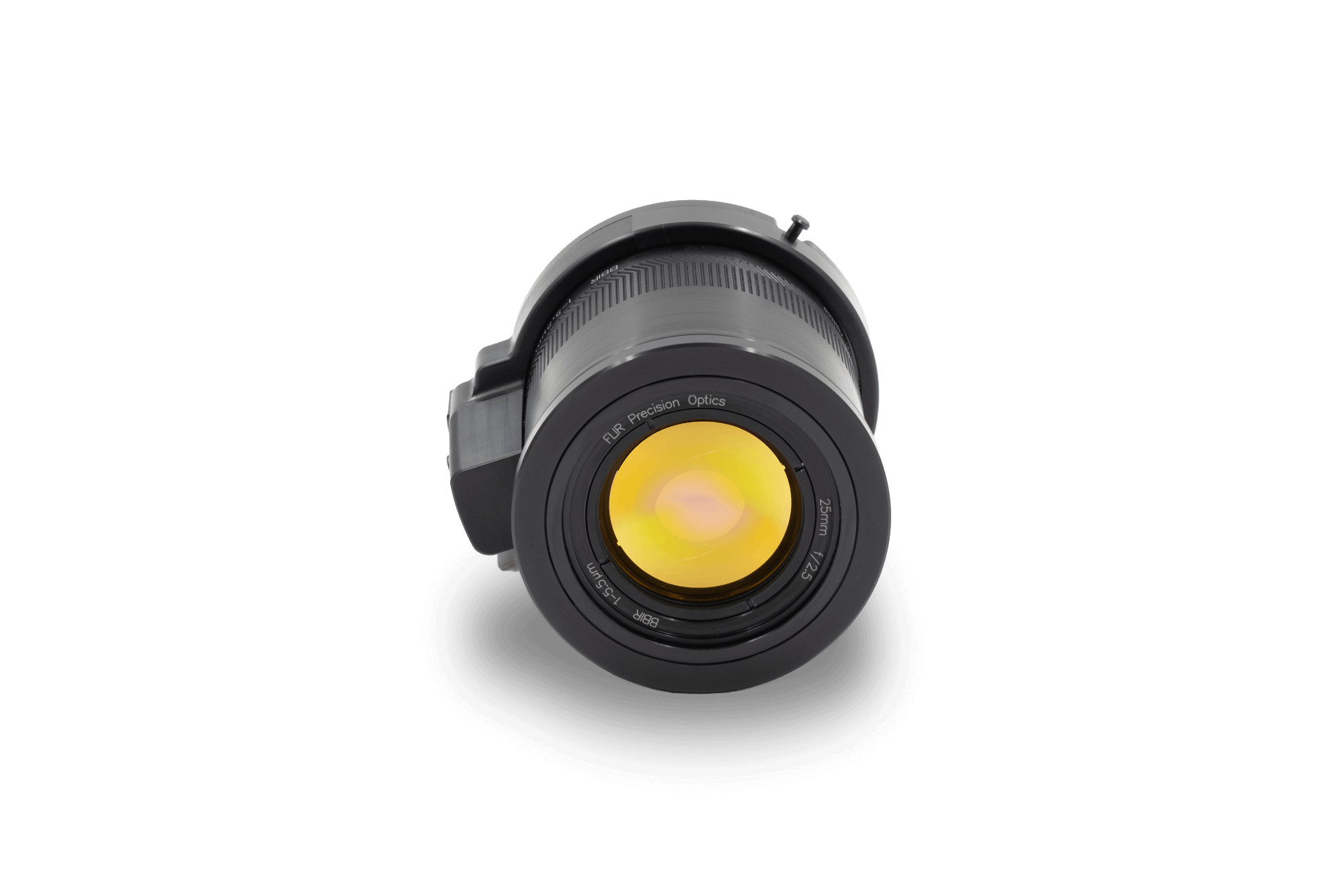

FLIR 25mm, 1.0-5.5µm, f/2.5 Broadband FPO Motorized Bayonet Lens (4242126)
Brand :
Teledyne FLIR
Categories :
R&D Lens
, High Performance Cameras
25mm, 1.0-5.5µm, f/2.5 Broadband FPO Motorized Bayonet Lens for FLIR R&D/Science Cameras, including the A67xx, A85xx, X69xx MWIR, and X85xx MWIR.
Specifications
-
Operating Temperature Range
-20 to +50°C
-
Weight
1.01 kg (2.23 lbs)
-
Average Transmission
82.91%
-
Length
93.21mm (3.67 in)
-
Diameter
90.37mm (3.56 in) excluding motor mount
-
f-number
2.5
-
Focus Range
200mm to Infinity
-
Focal Length
25 mm
-
Distortion
< 3%
-
Spectral Band
1 - 5.5 microns
-
Hyperfocal Distance
11/16 (at 4.2um/3um)
-
Filter_CameraType
Fixed Entry-Level||Fixed Advanced
-
Focus Method
Manual/Motorized
-
Interface
5-Tab Motorized FPO Bayonet **NOT compatible with non-motorized bayonet
